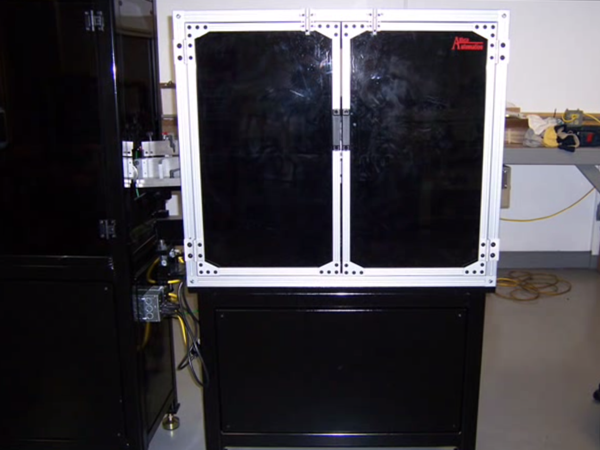

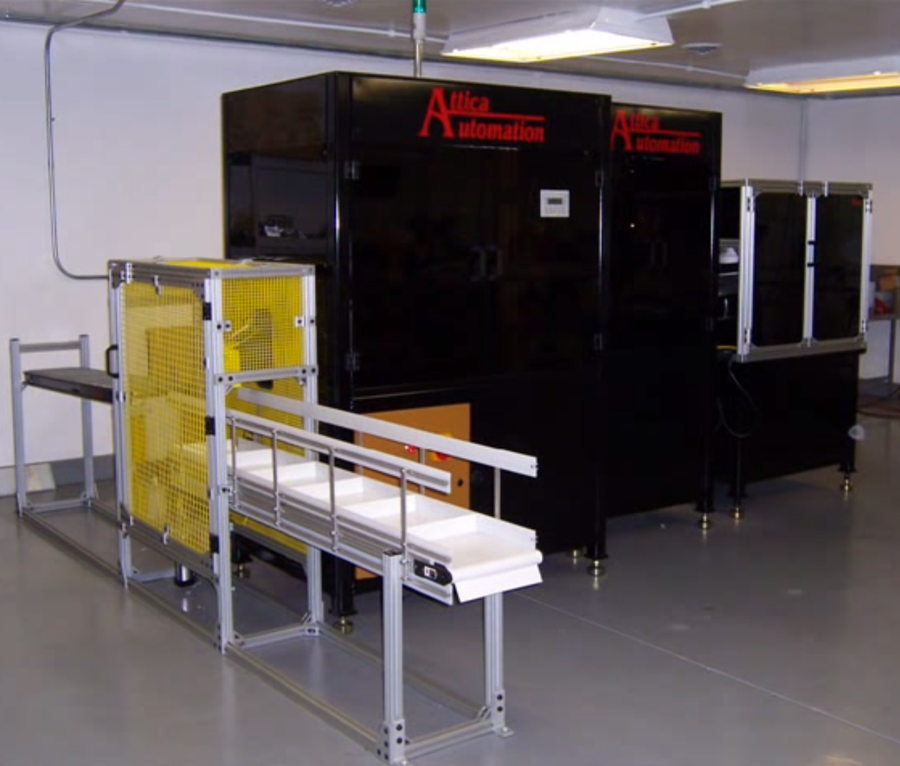

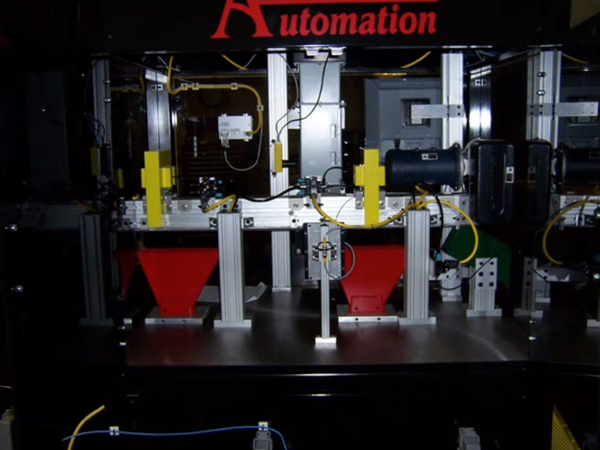

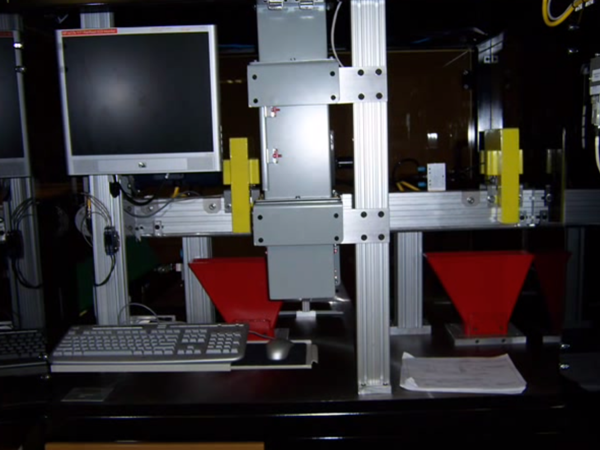

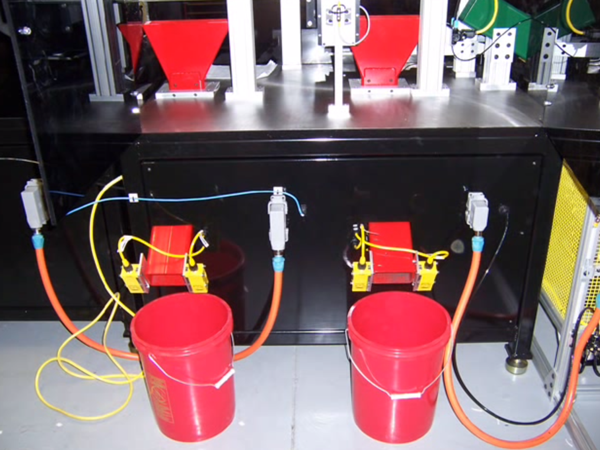

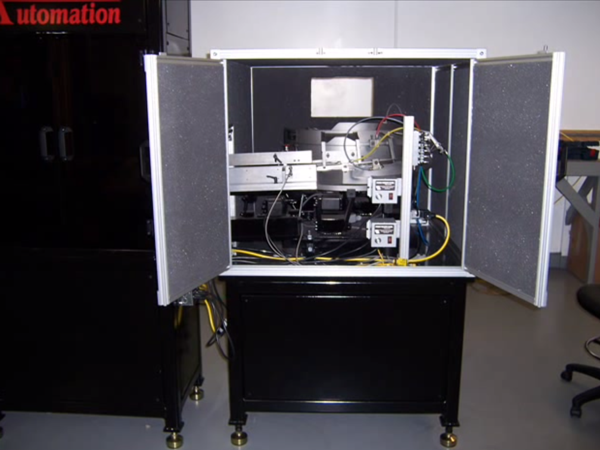

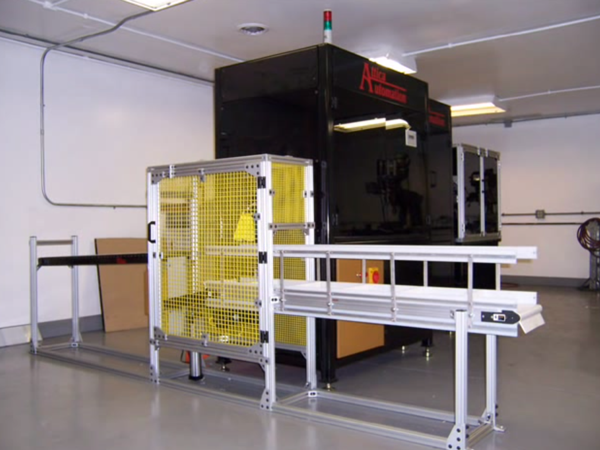

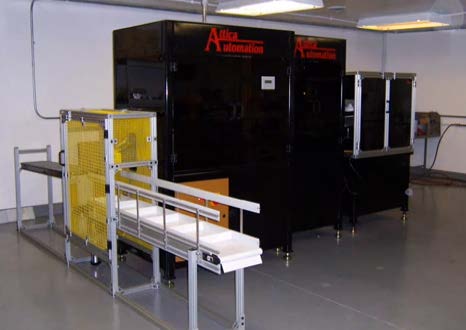

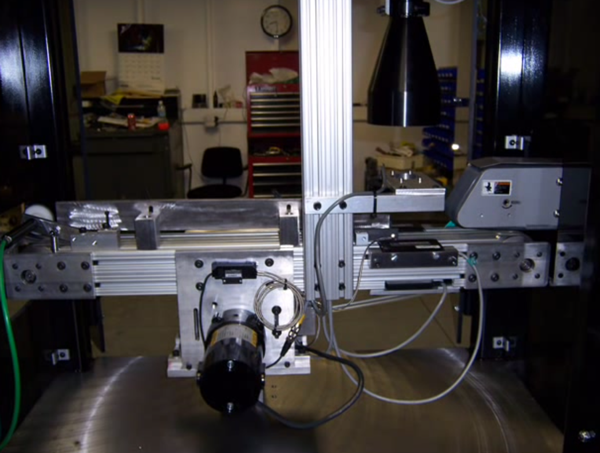

The AV-B100-G1 Inspection Machine is a high speed inspection machine the incorporates multiple inspection methods while presenting the product with two different conveyor systems.  The subsystem that sets this inspection machine apart from the competition is the Attica Drive™ Magnetic Belt System.  This system carries the product with a split belt conveyor system for head inspection and then transfers the product to a magnetic belt conveyor system for side profiling and bottom inspection.  During this process, multiple inspection methods can be used to verify your part including:

• Vision
• Image Splitting
• Eddy Current
• Lasers
• Physical Gauging

PART SPECIFICATIONS:

• Length – 25mm to 225mm
• Diameter – M6 to M20
• Speed – 120 to 600 PPM

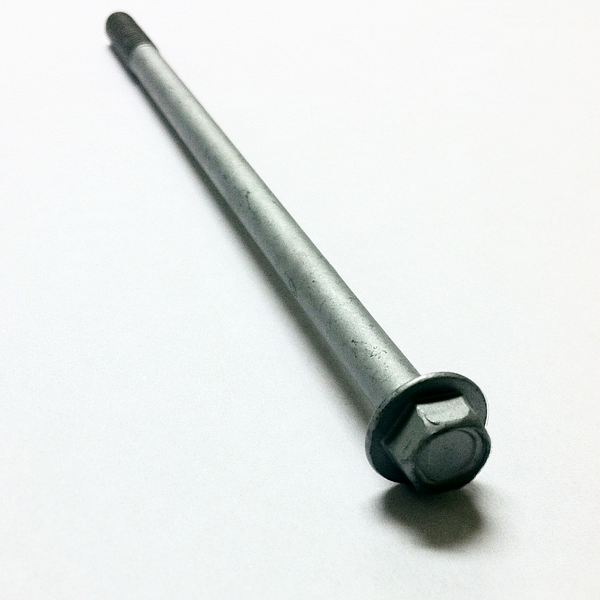

PRODUCT EXAMPLES:

• Bolt
• Screw
• Nut
• Washer
• Rivet
• Fuel nut
• Rubber gasket
• Fasteners
• And much much more!

REQUIREMENTS:

• Power – 110v – 220v AC – 50-60HZ – 1 or 3 Phase
• Air – 80 PSI

While we can state our common defects, there are many other defects that we can find without an issue.  Below is a list of some of the common defects we find:

• Over All Length
• Length Under Head
• All Dimensional Characteristics
• Torx® Recess Overfill
• Broken Punch
• Head Cracks
• Flange Cracks
• Hardness
• Presence of Threads
• Spiral Threads (Helix Angle)
• MIN and MAX Thread Pitch
• Damaged Threads
• Internal Threads
• Plating Presence
• Surface Defects
• ID and OD
• And Much More!

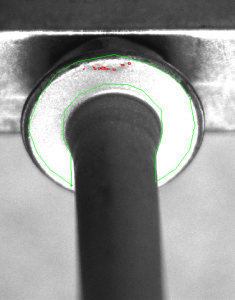

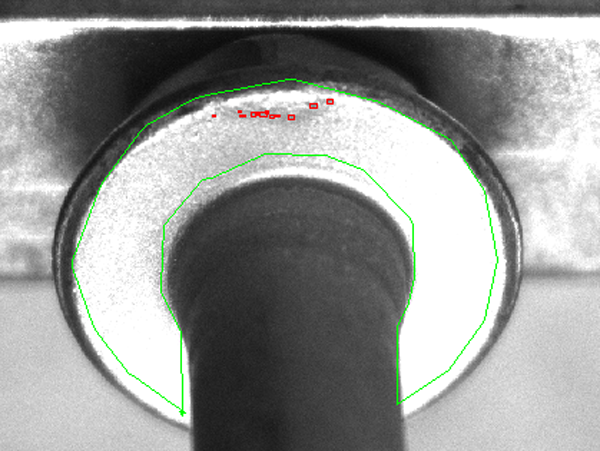

Vision Options:

• Cameras
  • up to 8 Cameras
• 360º Inspection
  • Multi Image Inspection
  • ID Boroscopic Inspection
• Eddy Current
  • Single/Multi Probe
  • Coil
