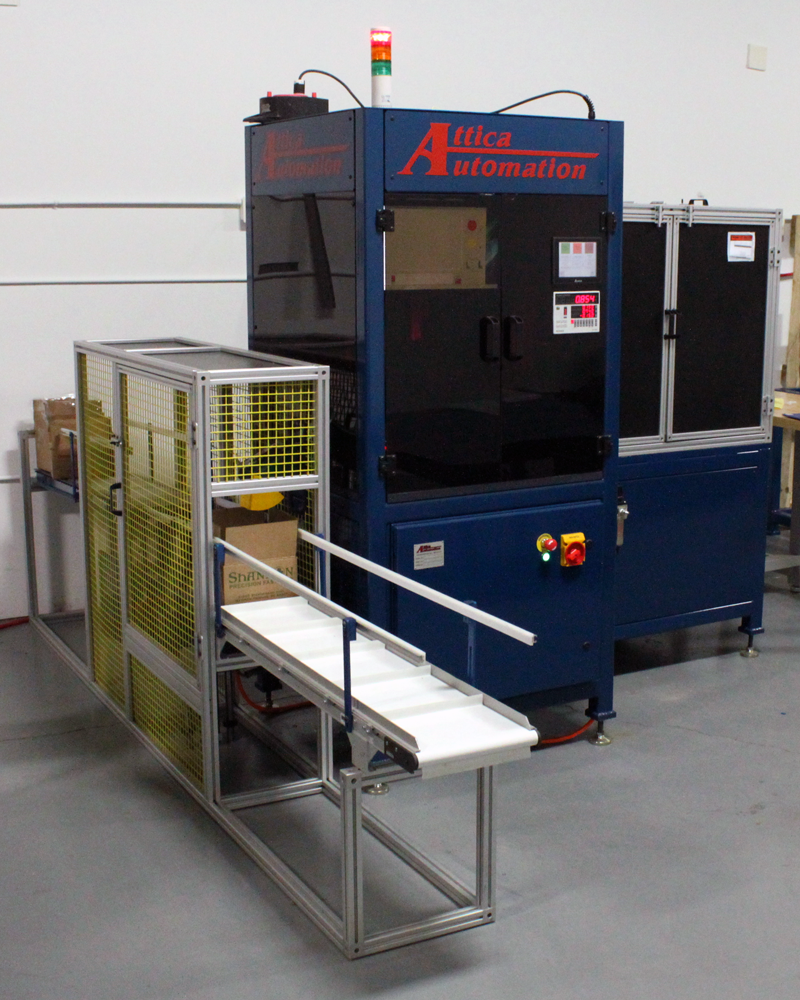

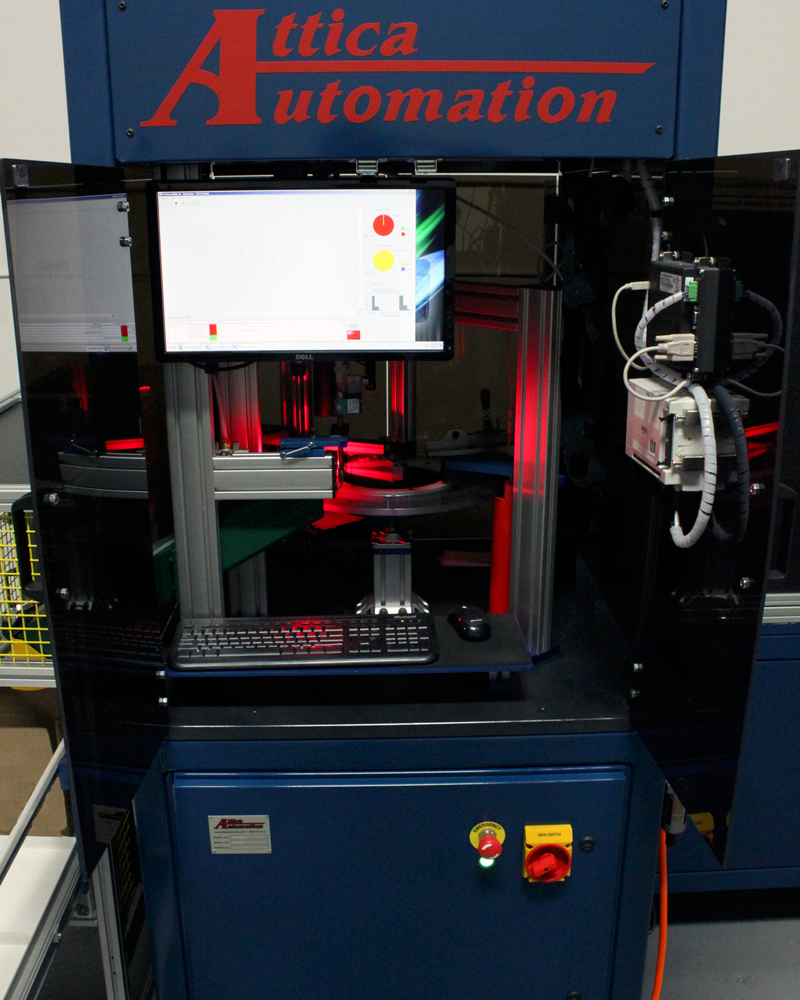

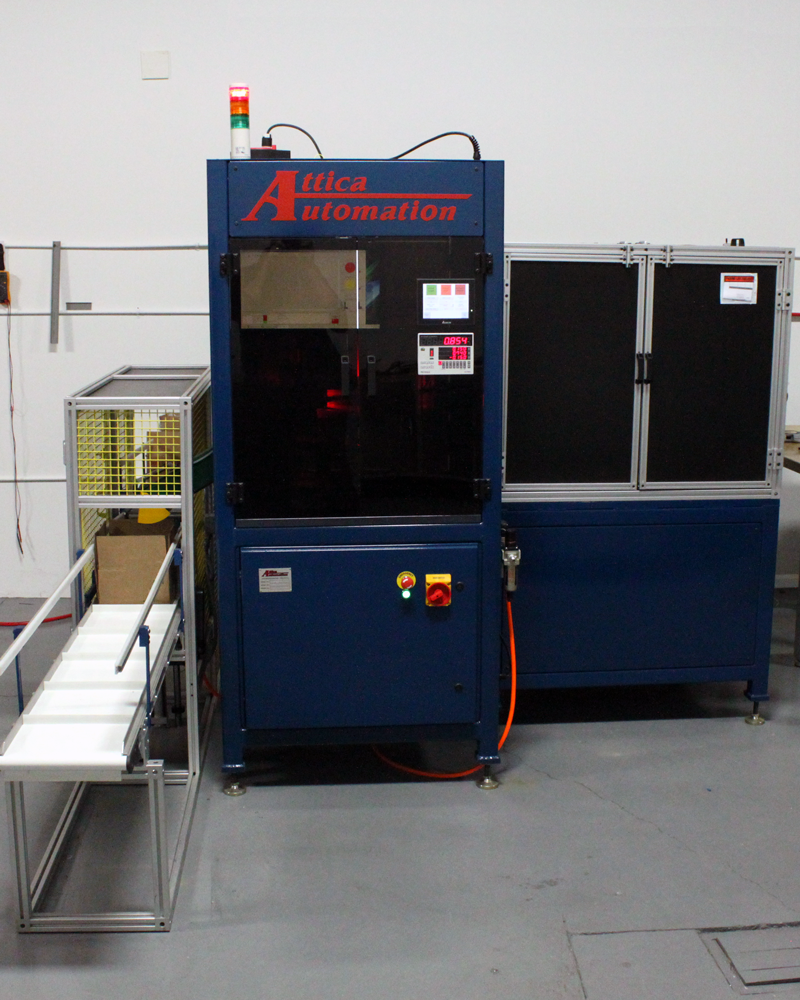

Attica Automation’s AV-D100 Inspection Machine is our highly customizable inspection and sorting machine that allows you to run the highest variety of parts on one system. Not only does this inspection machine have the ability to run as a turnkey system, but it also allows you to customize the inspection and sorting processes. Built on a solid steel frame, this inspection system has stood the test of time in the manufacturing environment while keeping its precision and accuracy.
Contact USAV Series Brochure (Eng.) AV Series Brochure (Esp.)

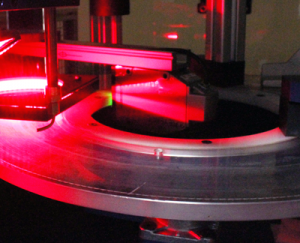

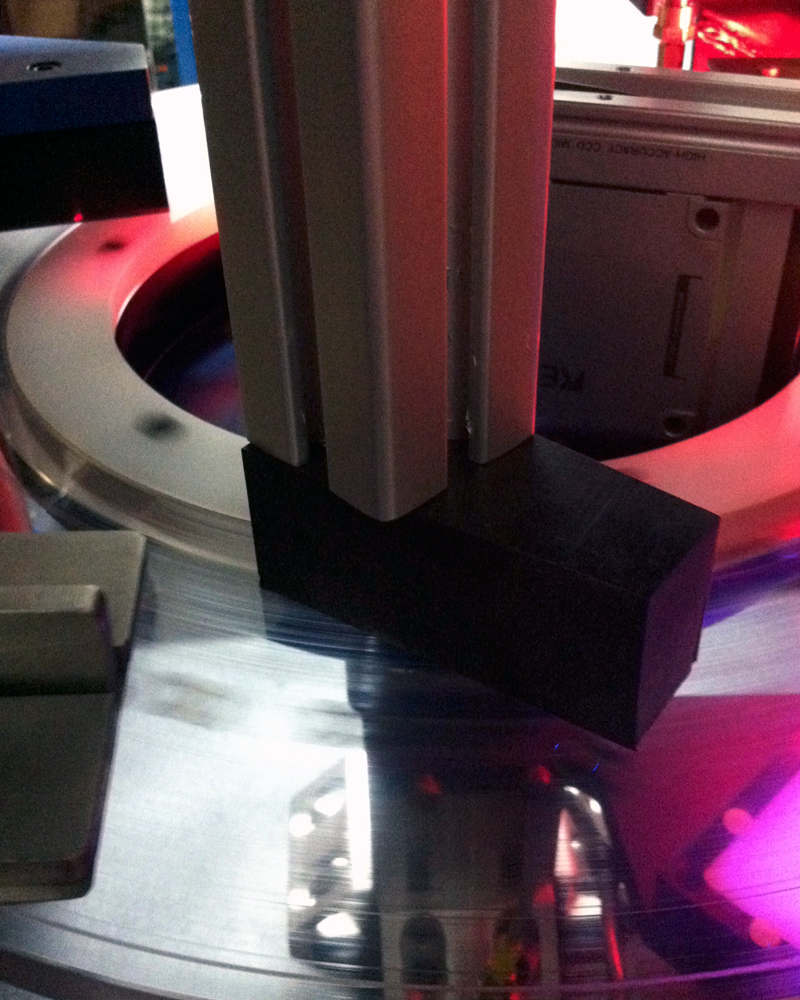

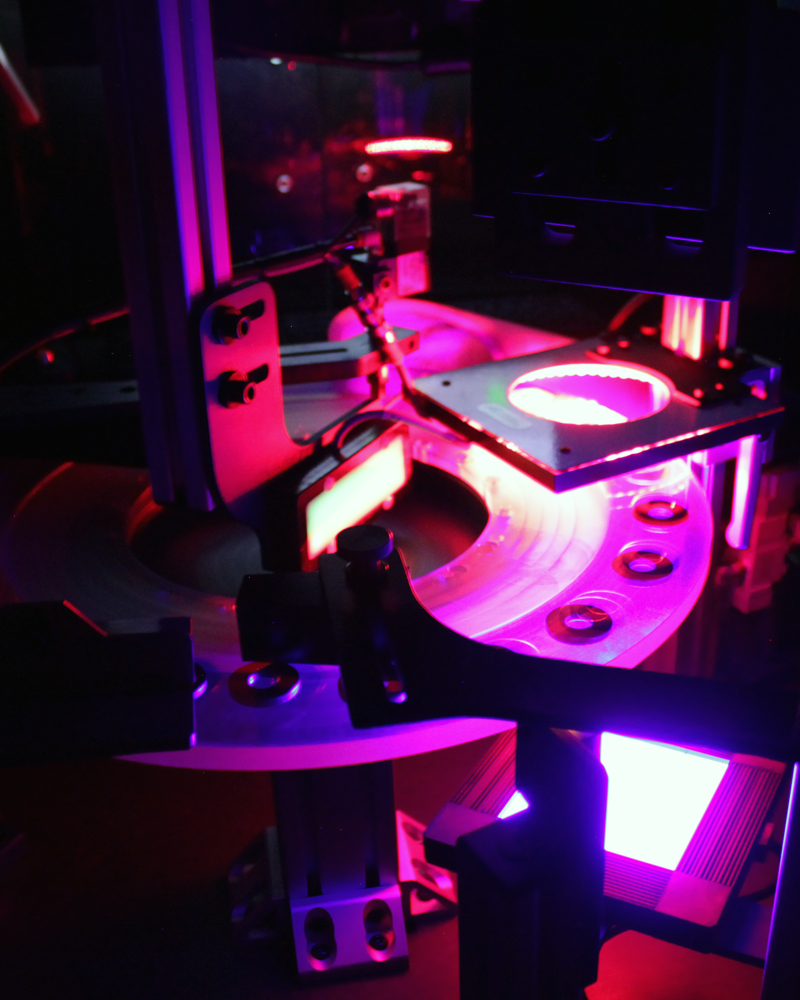

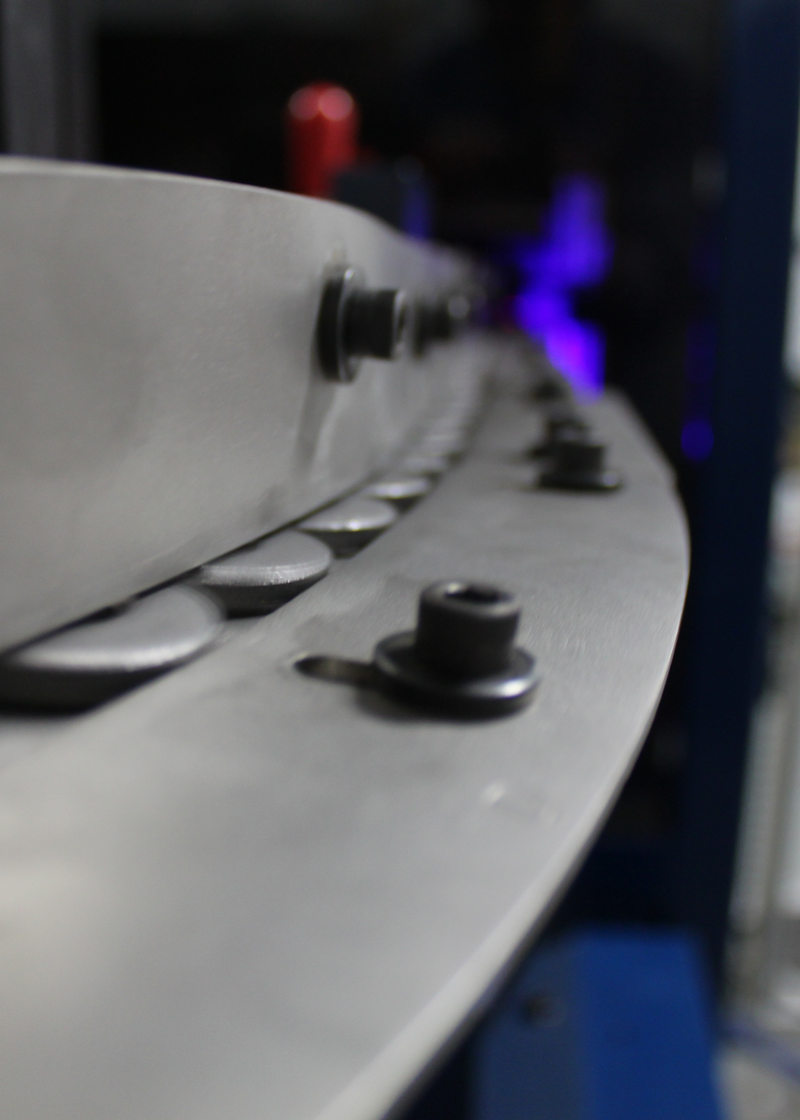

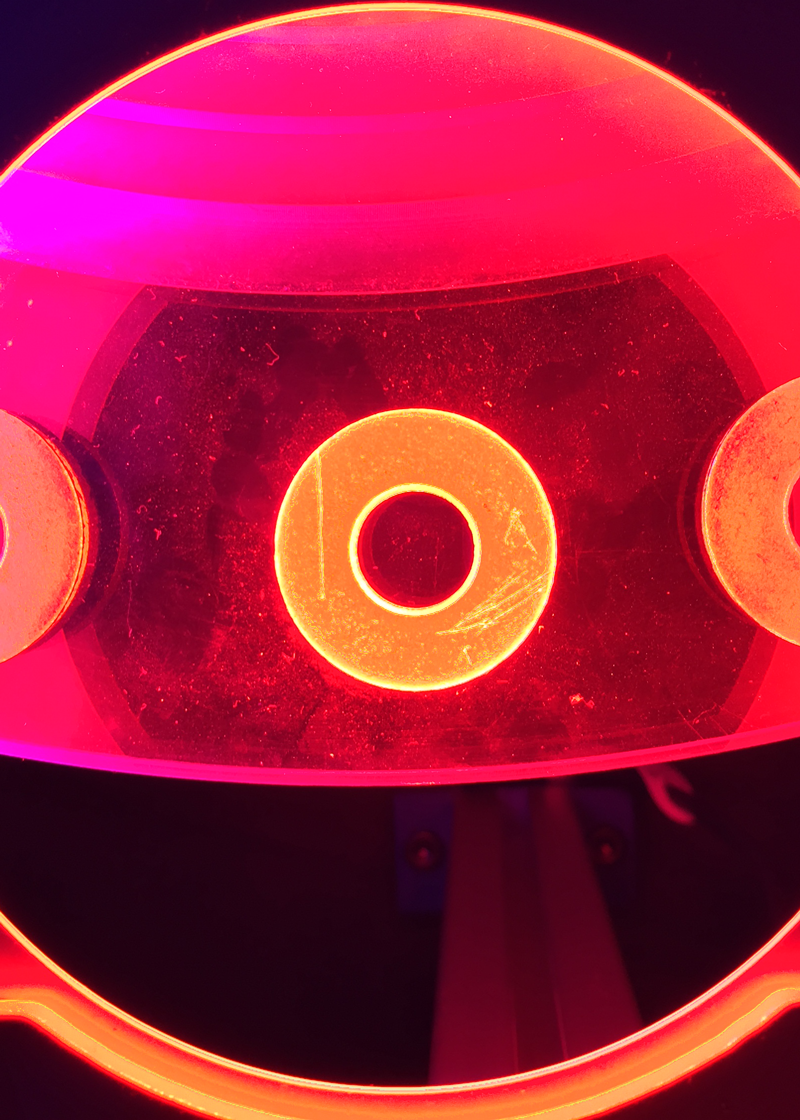

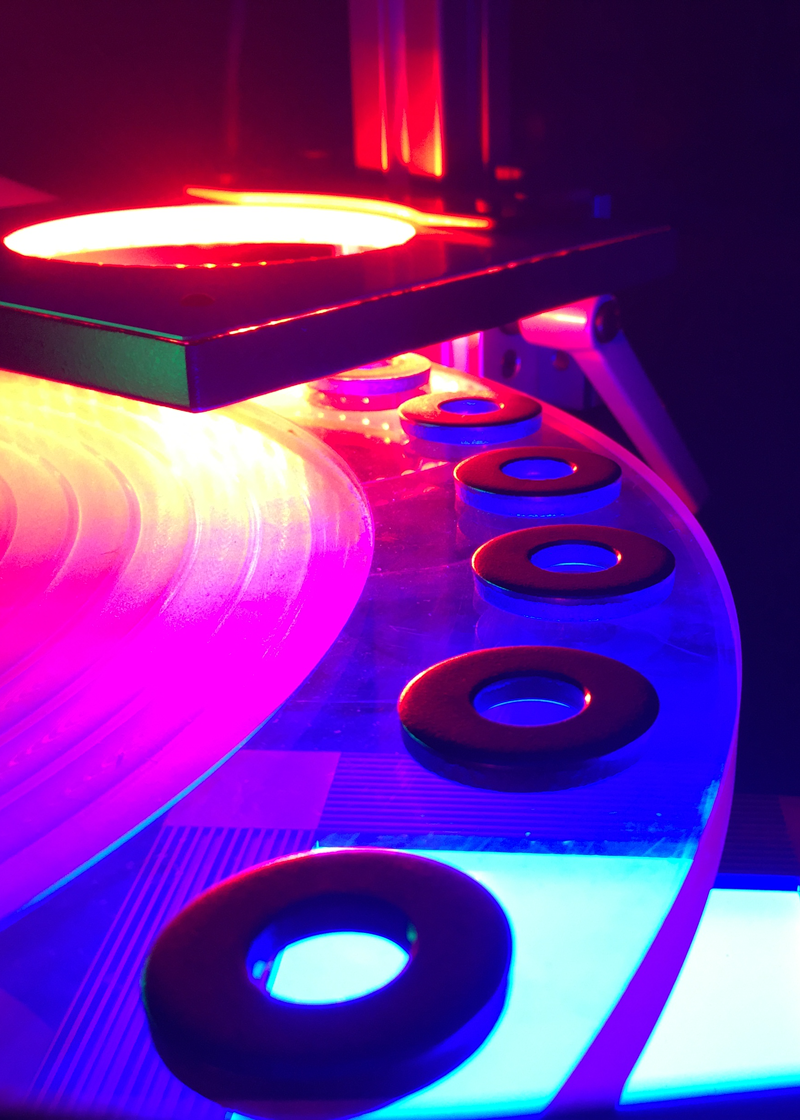

The AV-D100-F Flat Dial Inspection Machine is designed to run any types of parts that can sit on a flat surface. By design, this type of system will have a clear dial allowing light to pass through the surface of the dial. It then tracks the part through the different inspection stations until the part is proven to be good. Since this system is designed to run a high variety of parts with numerous inspection options, it is categorized as one of the following:
- Continuous
- indexing
Within these two dial options, We have found that our customers like the fact that we can think “outside the box” when it comes to inspection. Here are some examples of different sub-systems that we have included with this model:
- Assembly Station
- Eddy Current Inspection Station

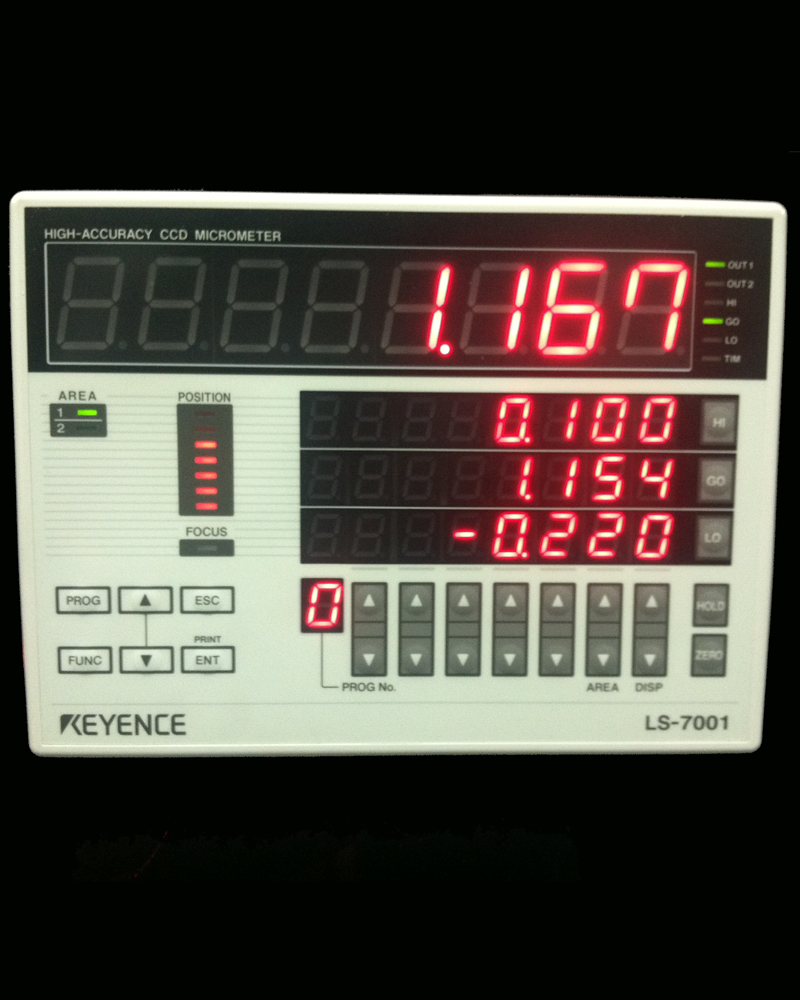

- Laser Inspection Station
- Press Station

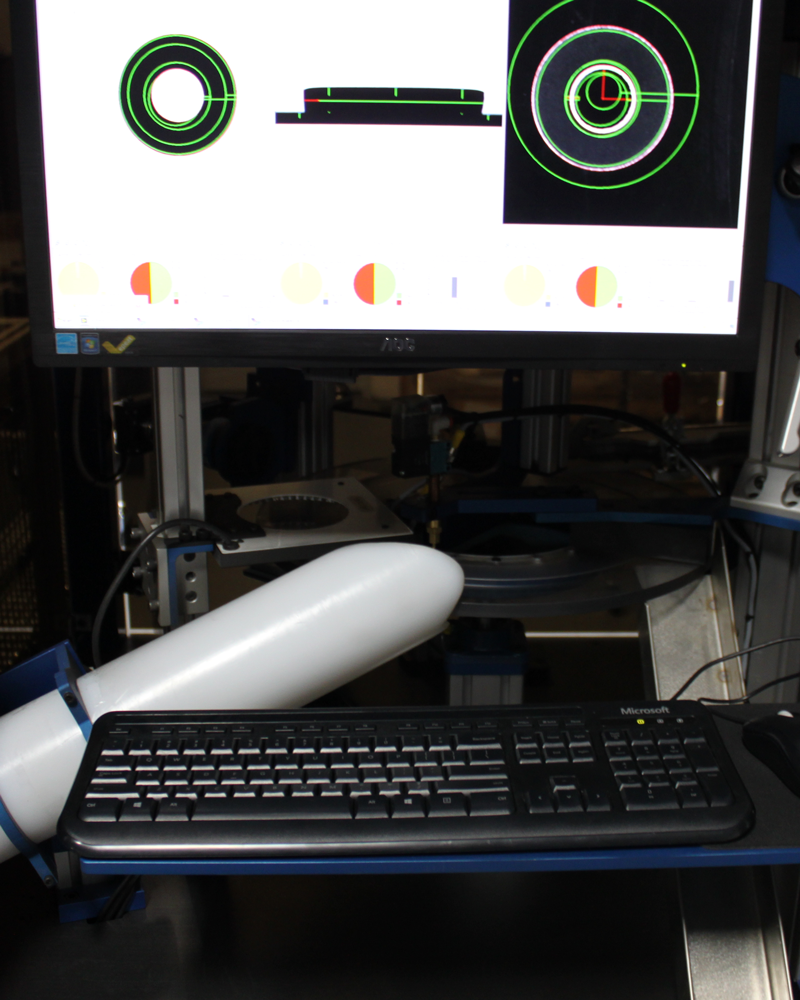

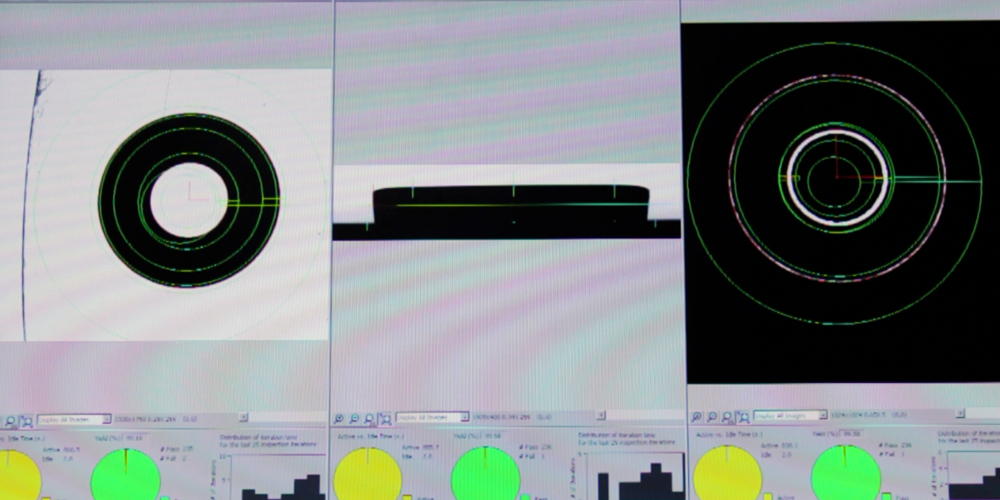

- Multi-Image Inspection Station
- Paint Application Station
- Much More
Obviously every part is different, so each every machine has it’s own customizations and tweaks to find the defects you need to identify. Here are some general guidelines when it comes to the parameters of this machine:

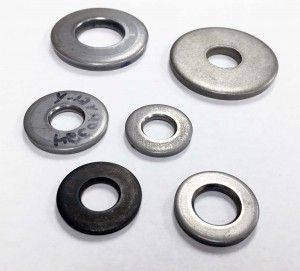

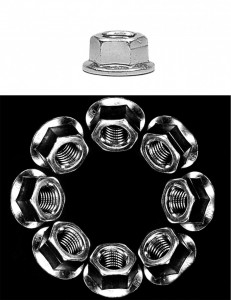

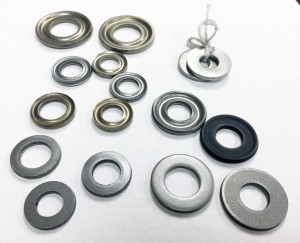

PRODUCTS:
All Dimensional Characteristics
