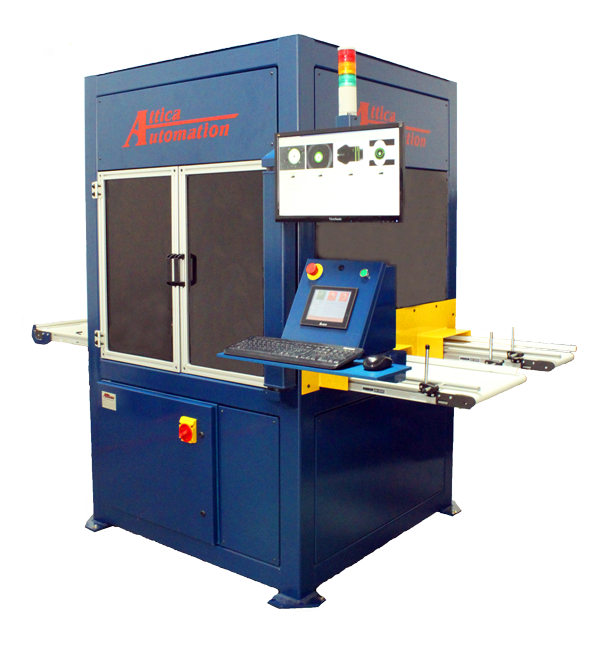

With the technology and speed of the new robotic systems, Attica Automation is able to achieve some astounding results.  Each AV-R100 Inspection Machine is designed around a part family provided by our clients.  This means that while we can create a series of inspection machines, each machine will have its own customized options.  With this “outside the box” mindset,  we have been able to incorporate many different sub-systems into a system Here are some examples of different sub-systems that we have included with this model:

• Assembly Station
• Eddy Current Inspection Station
• Laser Inspection Station
• Press Station

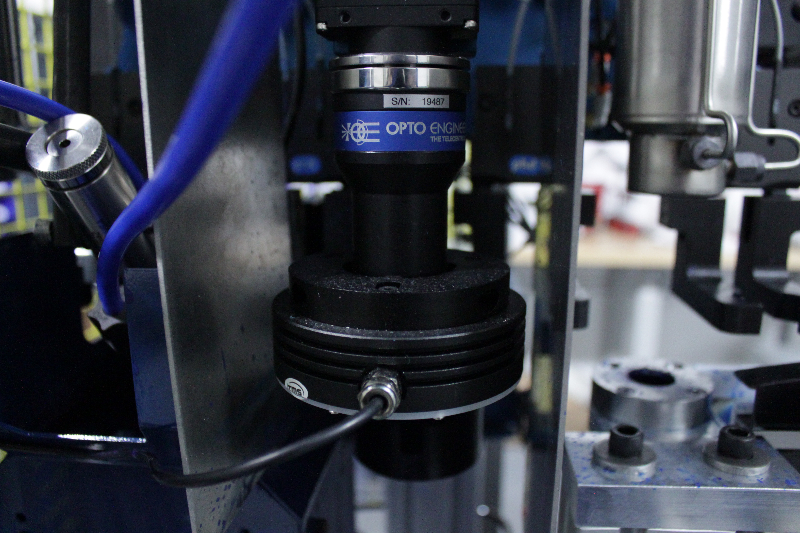

• Multi-Image Inspection Station
• Paint Application Station
• Wax Application Station
• Integrated Specialized Piece Packaging

Since every part is different, each machine has it’s own customizations and tweaks to guarantee a quality part.  Here are some general guidelines when it comes to the parameters of this machine:

PART SPECIFICATIONS:

• Any Material
• Any Size

PERFORMANCE ESTIMATES:

• Speeds up to 300 PPM
• +/- .001″ tolerance
• Customized packaging

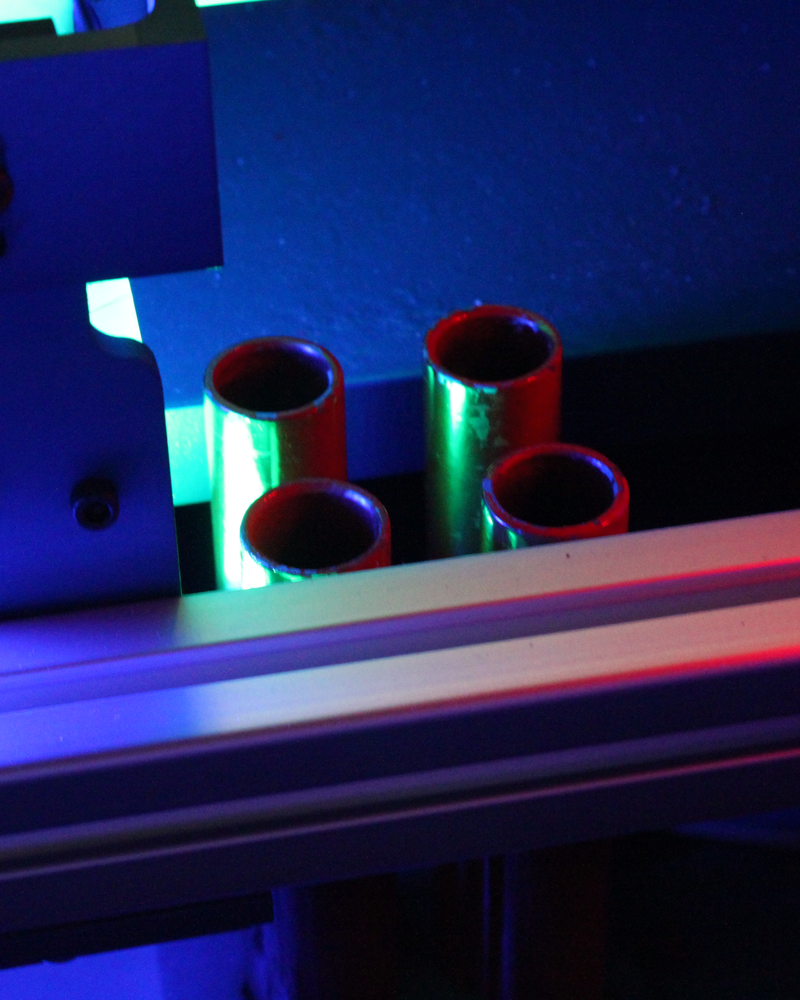

• Failure classification
• Multiple Inspection and Assembly Stations
• Integration with current systems

PRODUCT EXAMPLES:

• Fuel Fittings

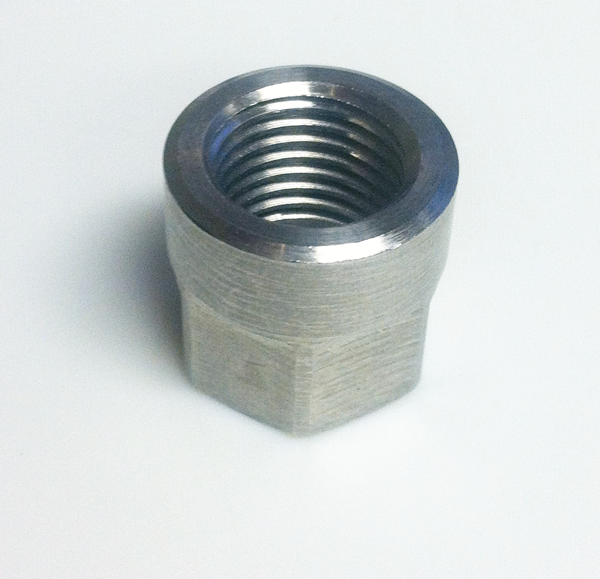

• Fuel Nuts
• High Precision Components
• Fasteners

REQUIREMENTS:

• Power – 110v – 220v AC – 50-60HZ – 1 or 3 Phase
• Air – 80 PSI

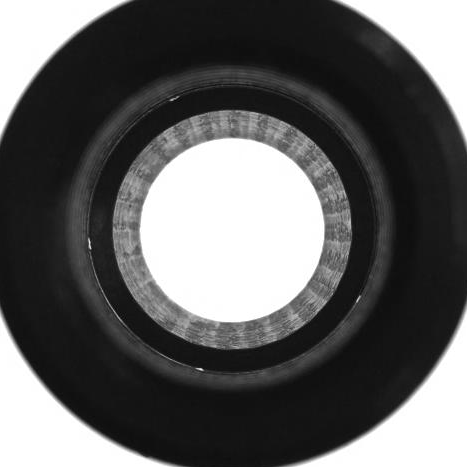

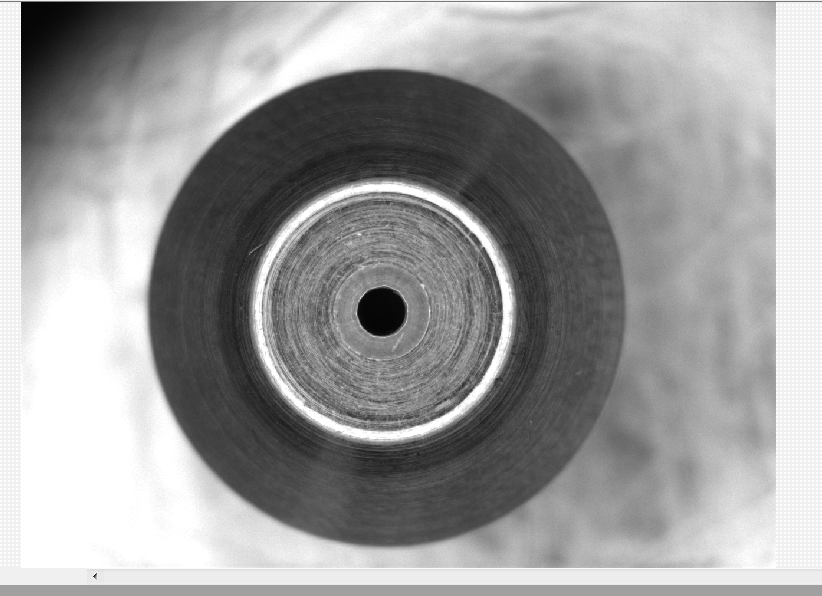

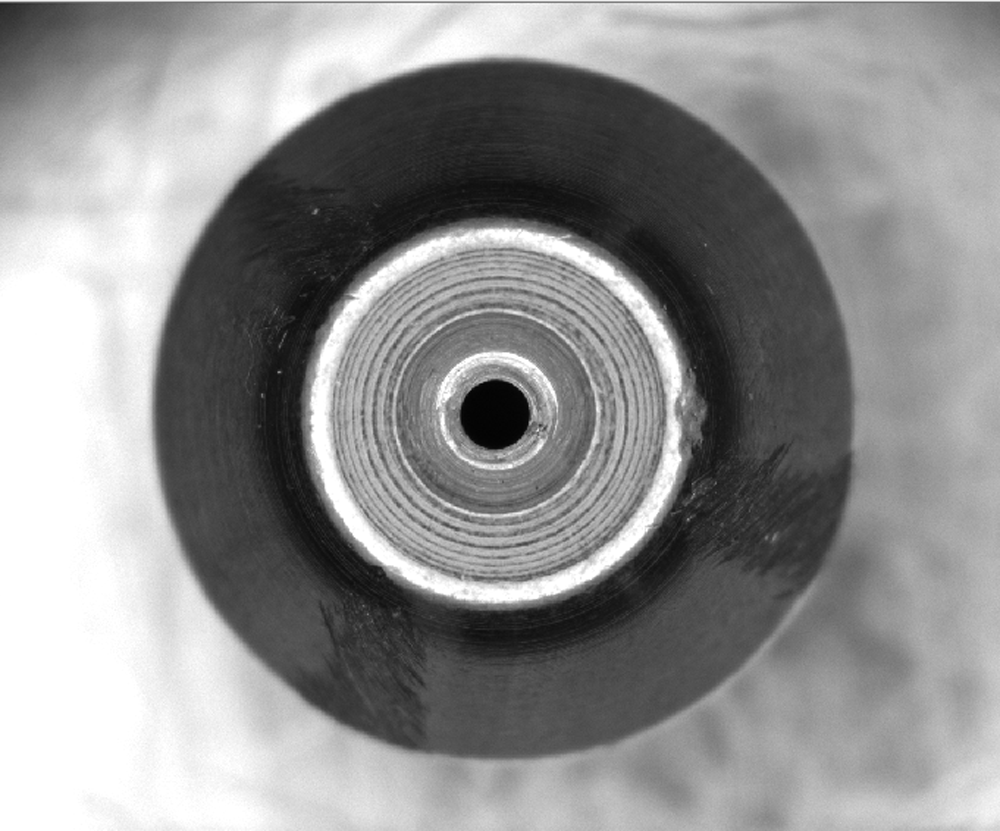

While we can state our common defects, there are many other defects that we can find without an issue.  Below is a list of some of the common defects we find:

• All Dimensional Characteristics
• Surface Defects
• Cracks
• Bent parts
• ID
• OD
• Presence of Threads
• Spiral Threads (Helix Angle)
• MIN and MAX Thread Pitch
• Damaged Threads
• Internal Threads
• Plating Presence

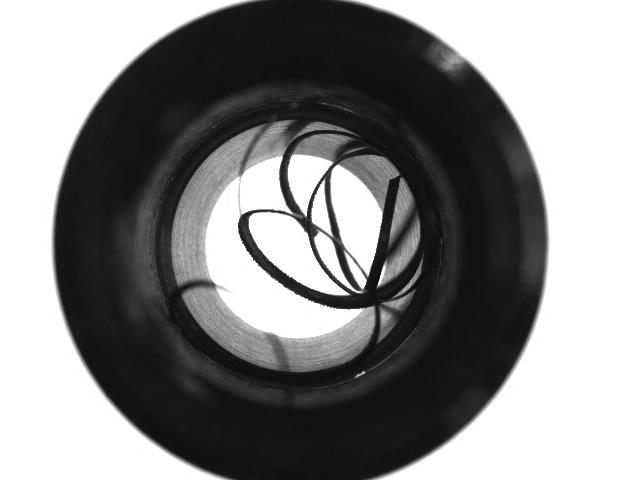

• Foreign Material
• Chamfer
• Tool Marking
• And Much More!

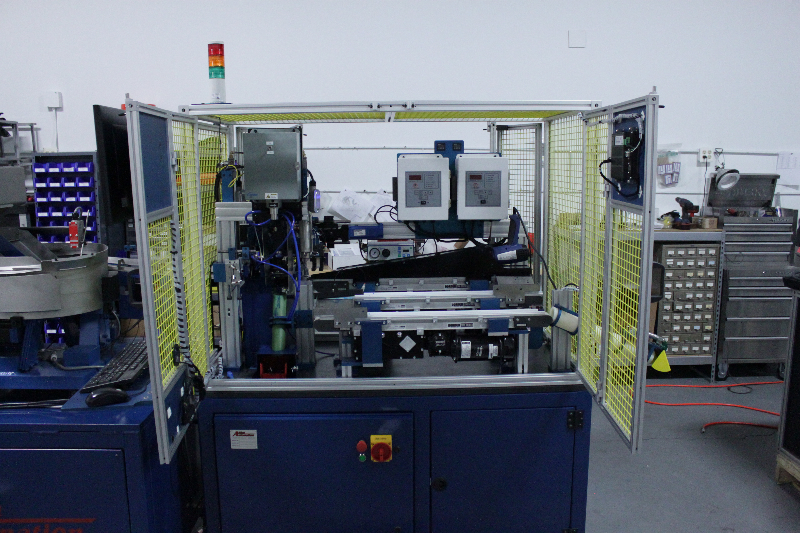

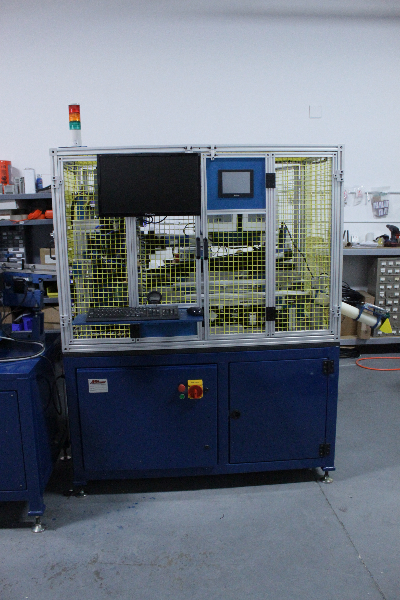

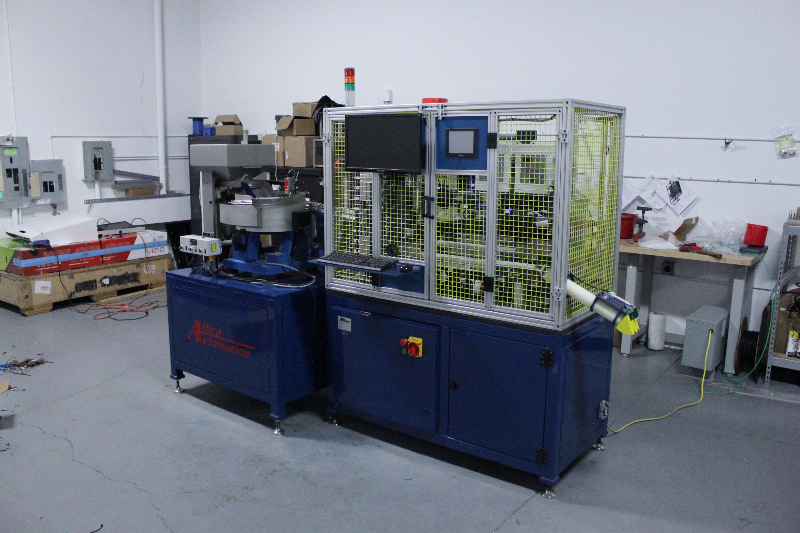

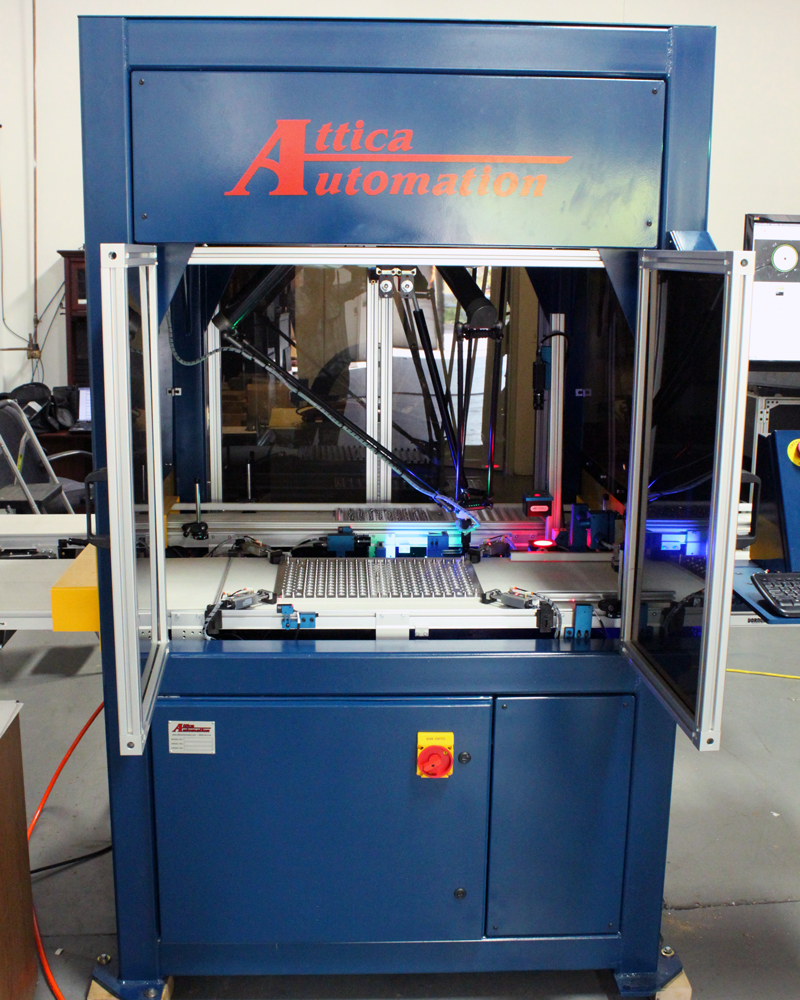

AV-R100 Fuel Nut Inspection and Packaging Machine

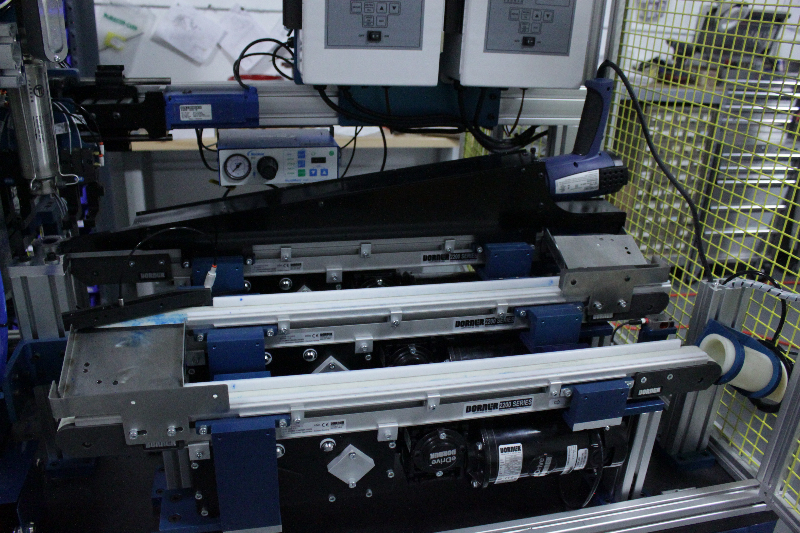

AV-R100 Robotic Camwax Application and Inspection Machine
